400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace

ブランド名:	UVIR
モデル番号:	SHC100019
MOQ:	10
価格:	交渉可能

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

加熱長:

255±5 mm

リフレクター:

白

作業時間:

5000H

波長:

短波

OEM/ODM:

多くの種類の電圧、ワット数、長さ、ベース、ケーブル、ユニバーサル燃焼位置が利用可能です

フィラメントタイプ:

タングステン

フィラメント温度:

1100-2600°C

力:

1850W

電圧:

400V

全長:

328mm

パイプの直径:

12.8mm

パッケージの詳細:

シリンダーの各ランプ。それから専門の合板箱で。

ハイライト:

255mm Heating Length Quartz Infrared Lamp

1100-2600°C Filament Temperature Halogen Heater Tube

328mm Total Length Infrared Heater Lamp

製品説明

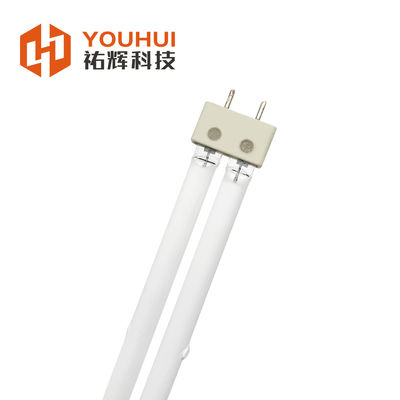

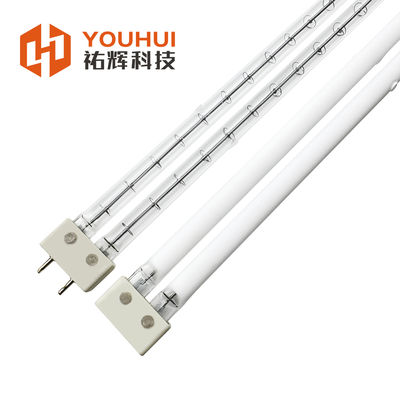

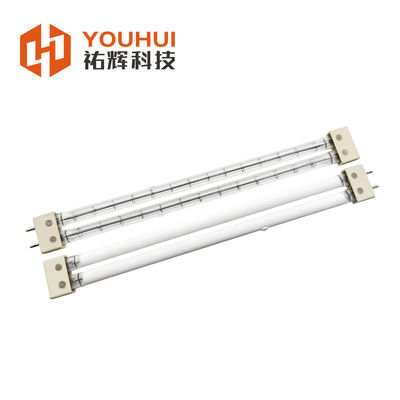

400V 1850W Single Tube IR Emitters Halogen Quartz Heater Tube for Preheating of Annealing Furnace Lamp

Product Specifications

Attribute	Value
Heating length	255±5mm
Reflector	White
Working Time	5000h
Wave Length	Short wave
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available
Filament type	Tungsten
Filament temperature	1100-2600°C
Power	1850W
Voltage	400V
Total length	328mm
Pipe diameter	12.8mm

Short Wave Infrared Emitter Transparent Quartz Tube Heating Lamp

Benefits of Infrared Heat

Clear heating: No surface corrosion or dropping off
Quick controllable heat: Heating time is adjustable as needed
Clean and odorless: No risk of contamination to environment or target objects

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products (e.g., banners machine)

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical requirements.

We produce various sizes and types of heat lamps according to customer specifications. Providing drawings helps us create accurate samples for your evaluation.
